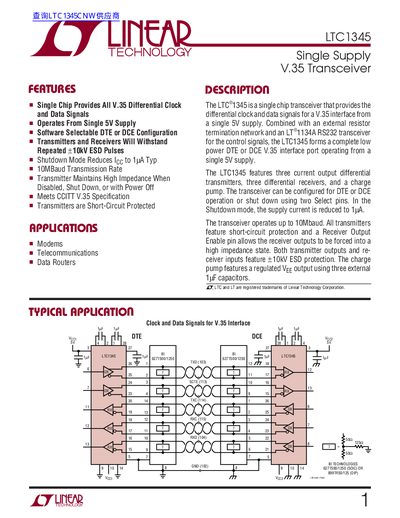

The LTC1345 is a single chip transceiver that provides the differential clock and data signals for a V.35 interface from a single 5V supply. It features software selectable DTE or DCE configuration, ESD protection, and short-circuit protection.
The LTC1345 is a single chip transceiver that provides differential clock and data signals for a V.35 interface from a single 5V supply. Combined with an external resistor termination network and an LT1134A RS232 transceiver for control signals, it forms a complete low power DTE or DCE V.35 interface port.
The device features three current output differential transmitters, three differential receivers, and a charge pump. It operates up to 10Mbaud with short-circuit protection on transmitters and +10kV ESD protection on both transmitter outputs and receiver inputs.
| Supply Voltage | 5V +/- 5% |
|---|---|
| ESD Protection | +10kV |
| Shutdown Supply Current | 1 mA Typ |
The transceiver operates up to 10Mbaud.
Yes, it features software selectable DTE or DCE configuration using two Select pins.
No, it operates from a single 5V supply.
