This document introduces the accessories for Agilent Micro GC, including mounting brackets and various attachments for different models. The accessories include flow controller, outlet tubes, nut and ferrule set, etc. These accessories are only compatible with specific models of Agilent Micro GC and are not interchangeable with other accessories. The document also provides instructions on how to install the pressure reducer accessories.

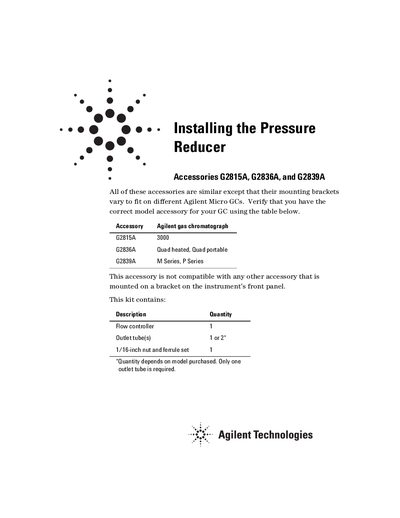

The document details the installation of three specific pressure reducer accessories: G2815A for the 3000 Micro GC, G2836A for Quad heated/Quad portable GCs, and G2839A for M Series and P Series GCs. It includes a compatibility table to ensure users select the correct accessory for their instrument model.
The sample inlet fitting may reach a temperature of 90 °C.
You need a 5/16-inch wrench and a 7/16-inch wrench.
You must use standard 1/8-inch fittings to connect the vent line.
