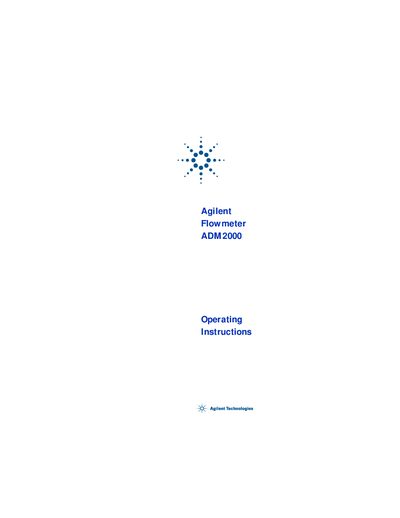

Agilent Flowmeter ADM2000 Operating Instructions, introduces the features and use methods of ADM2000
This manual provides step-by-step instructions for operating the Agilent ADM 2000 flowmeter, including how to adjust viewing angle, select modes (volumetric or mass flow), and set split ratios. It also details safety notices, auto-off features, and technical specifications such as flow range and accuracy. The device measures non-corrosive and non-flammable gases without using liquid or glass components.
| Flow range | 0.5 to 1000 mL/ min, autoranging |
|---|---|
| Accuracy | + 3% of reading, or + 0.2 mL/ min, whichever is greater |
| Tubing temperature range | -62°C to 110°C |
| Power | 9V battery (alkaline), or AC power adapter |
| Display | 16 character alphanumeric |
| Features | Automatic power off, Split ratio mode, NIST traceability, RS232 output |
It measures non-corrosive and non-flammable gases.
Connect tubing to the GC column, press the On button, then press the Qn button. Disconnect and reconnect to the split vent, adjusting flow until the desired ratio appears.
Accuracy is ±3% of reading or ±0.2 mL/min, whichever is greater.
While the display shows WARMUP, press and hold the Menu button until AUTO-OFF DISABLE is displayed.
