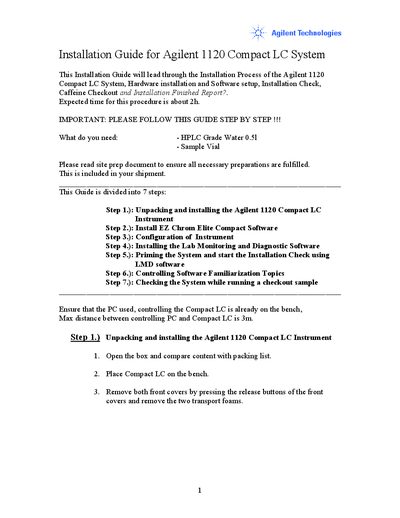

Agilent 1120 Compact LC System Installation Guide

About this manual

This guide walks users through installing the Agilent 1120 Compact LC System, including unpacking, hardware setup, software installation (EZ Chrom Elite Compact), and system checkout. It covers connecting components, priming tubing, installing software, and running a final checkout sample. The process takes approximately 2 hours and requires HPLC-grade water and a PC within 3 meters of the instrument.

The guide is divided into seven steps: hardware installation, software setup, instrument configuration, diagnostic software installation, system priming, software familiarization, and final system verification using a checkout sample.

What's inside

• Unpacking and Installing the Agilent 1120 Compact LC Instrument
• Install EZ Chrom Elite Compact Software
• Configuration of Instrument
• Installing the Lab Monitoring and Diagnostic Software
• Priming the System and Installation Check
• Controlling Software Familiarization Topics
• Checking the System with Checkout Sample

Frequently asked questions

How long does the installation process take?

The expected time for this procedure is about 2 hours.

What is the expected time to complete the installation of the Agilent 1120 Compact LC System?

The expected time for this procedure is about 2h.

What is the maximum distance allowed between the controlling PC and the Agilent 1120 Compact LC?

Max distance between controlling PC and Compact LC is 3m.

What volume of HPLC Grade Water is required for the solvent bottle?

Place Solvent Bottle filled with 0.5 liter HPLC grade water in the Solvent Tray.
