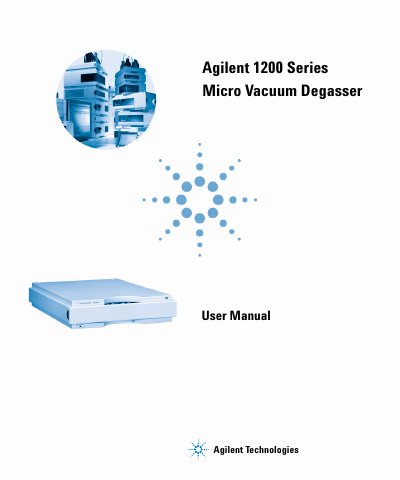

1200 Series Micro Vacuum Degasser User Manual
This manual provides detailed instructions for using the Agilent 1200 Series micro vacuum degasser, including setup, operation, troubleshooting, and maintenance. It covers site requirements, physical specifications, performance parameters, and safety precautions. The device is designed to degas solvents using vacuum technology and includes four channels with micro-structured membranes. It is intended for research use only and must be operated within specified environmental and electrical conditions.
The manual includes sections on installing the degasser, optimizing performance, troubleshooting hardware issues, and performing routine maintenance. It also lists parts and materials required for maintenance and provides safety warnings for electrical and environmental hazards.
| Weight | 7 kg (16 lbs) |
|---|---|
| Dimensions | 345 x 435 x 80 mm (13.5 x 17 x 3.1 inches) |
| Line Voltage | 100 – 240 VAC, ± 10% |
| Line Frequency | 50 or 60 Hz, ± 5% |
| Power Consumption | 30 VA / 30 W / 102 BTU Maximum |
| Ambient Operating Temperature | 0 – 55 °C (32 – 131 °F) |
| Ambient Non-Operating Temperature | -40 – 70 °C (-4 – 158 °F) |
| Humidity | < 95%, at 25–40 °C (77–104 °F) Non-condensing |
| Maximum Flow Rate | 0 - 5 ml/min per channel |
| Number of Channels | 4 |
| Internal Volume per Channel | Typically 1 ml per channel |
| Materials in Contact with Solvent | PTFE, FEP, PEEK |
| pH Range | 1 – 14 |
| RS-232 Output | For diagnostic purposes |
The maximum flow rate is 0 - 5 ml/min per channel.
The materials in contact with the solvent are PTFE, FEP, and PEEK.
The ambient operating temperature range is 0 – 55 °C (32 – 131 °F).
The power consumption is 30 VA / 30 W / 102 BTU Maximum.
