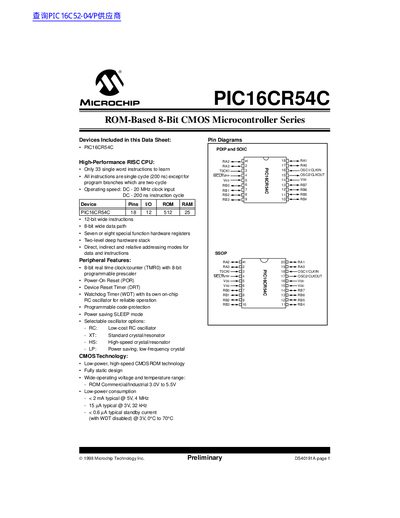

This is a detailed datasheet for the PIC16CR54C chip
The document describes the PIC16CR54C, an 8-bit fully static EPROM/ROM-based CMOS microcontroller from Microchip Technology. It employs a RISC architecture with only 33 single-word/single-cycle instructions, delivering high performance at a low cost. The device features a 12-bit wide instruction set and is available in various packages including PDIP and SOIC.
| Operating Speed | DC - 20 MHz clock input |
|---|---|
| Instruction Cycle Time | 200 ns (single cycle) |
| Program Memory Size | 512 words |
| RAM Data Memory | 25 bytes |
| I/O Pins | 18 pins |
| Voltage Range (Commercial) | 3.0V to 5.5V |
The device has only 33 single word instructions.
The typical standby current is less than 0.6 µA with WDT disabled.
