This datasheet provides a detailed overview of the PIC16LC74B-16/PTL16 microcontroller, including its core features, operating speed, memory size, interrupt capability, power management, timers and capture, compare and PWM functions.

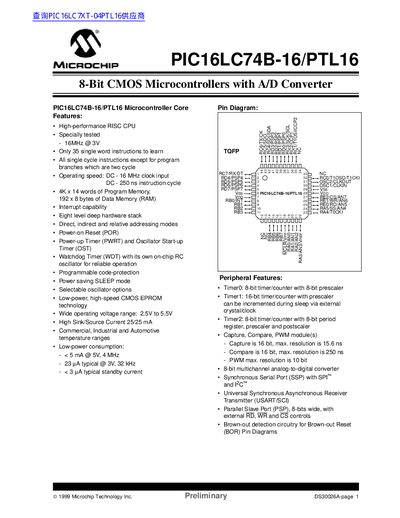

This document is a preliminary datasheet covering the PIC16LC74B-16/PTL16 device. It details the functional characteristics of this 8-bit CMOS microcontroller with an on-chip A/D converter, noting that its features are identical to the PIC16LC74B model.
The datasheet provides comprehensive electrical specifications, including absolute maximum ratings and DC/AC characteristics for commercial temperature ranges (0°C to +70°C). It lists specific parameters such as supply voltage, current consumption in various modes, input/output voltage levels, and timing details.
| Program Memory | 4K x 14 words |
|---|---|
| Data Memory (RAM) | 192 x 8 bytes |
| Operating Speed | DC - 16 MHz clock input |
| Instruction Cycle | 250 ns |
| Operating Voltage Range | 2.5V to 5.5V |
| Power-down Current | < 5 uA @ 3.0V |
The standard operating conditions are defined as 0°C to +70°C.
The device supports only 35 single word instructions to learn.
