MT8808 is an 8x8 analog switch array with internal control latches and address decoder, short set-up and hold times, wide operating voltage range, 12Vpp analog signal capability, low distortion full CMOS switch, and other features.

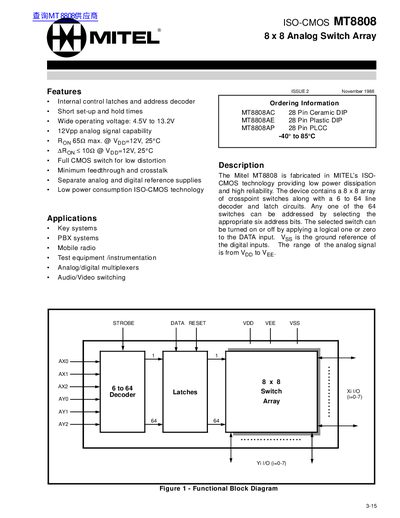

The Mitel MT8808 is an integrated circuit fabricated in MITEL's ISO-CMOS technology. It features an 8 x 8 array of crosspoint switches along with a 6 to 64 line decoder and latch circuits, allowing any one of the 64 switches to be addressed by selecting appropriate six address bits.
| Array Size | 8 x 8 Analog Switch Array |
|---|---|
| Operating Voltage Range | 4.5V to 13.2V |
| Analog Signal Capability | 12Vpp |
| Off-state Leakage Current | +/- 500 nA |
| Switching Frequency | 20 MHz |
The device is suitable for key systems, PBX systems, mobile radio, test equipment/instrumentation, analog/digital multiplexers, and audio/video switching.
Any one of the 64 switches in the array can be addressed by selecting the appropriate six address bits.
A logical '1' on the RESET input will asynchronously return all memory locations to logical '0', turning off all crosspoint switches.
