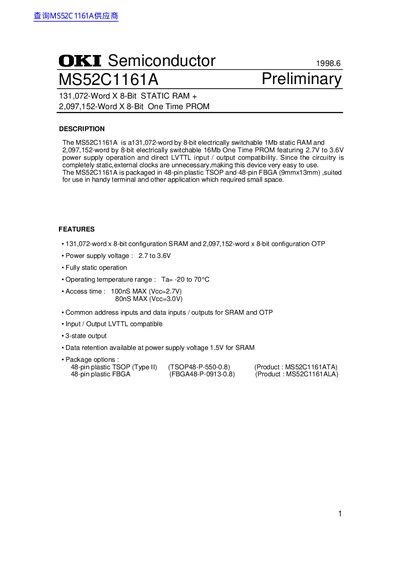

The MS52C1161A is a 131,072-word by 8-bit electrically switchable 1Mb static RAM and 2,097,152-word by 8-bit electrically switchable 16Mb One Time PROM featuring 2.7V to 3.6V power supply operation and direct LVTTL input / output compatibility. Since the circuitry is completely static, external clocks are unnecessary, making this device very easy to use. The MS52C1161A is packaged in 48-pin plastic TSOP and 48-pin FBGA (9mmx13mm), suited for use in handy terminal and other application which required small space.
The MS52C1161A is an electrically switchable static RAM and One Time PROM integrated circuit manufactured by OKI Semiconductor. It combines a 131,072-word x 8-bit SRAM with a 2,097,152-word x 8-bit OTP in a single package.
The device operates on a power supply voltage ranging from 2.7V to 3.6V and features fully static operation, eliminating the need for external clocks. It is available in 48-pin plastic TSOP and FBGA packages.
| Memory Configuration SRAM | 131,072-word x 8-bit |
|---|---|
| Memory Configuration OTP | 2,097,152-word x 8-bit |
| Power Supply Voltage | 2.7 to 3.6V |
| Operating Temperature Range | -20 to 70°C |
| Access Time Max (Vcc=2.7V) | 100nS |
| Package Options | 48-pin plastic TSOP and FBGA |
Yes, it features direct LVTTL input / output compatibility.
No, since the circuitry is completely static, external clocks are unnecessary.
