MR27T3202F is a P2ROM storage device produced by OKI. It has a capacity of 2,097,152-word × 16-bit / 4,194,304-word × 8-bit, a working voltage of 2.7 V to 3.6 V, an access time of 90 ns MAX, a working current of 20 mA MAX (5MHz), a standby current of 10 µA MAX, and input/output TTL compatible three-state output.

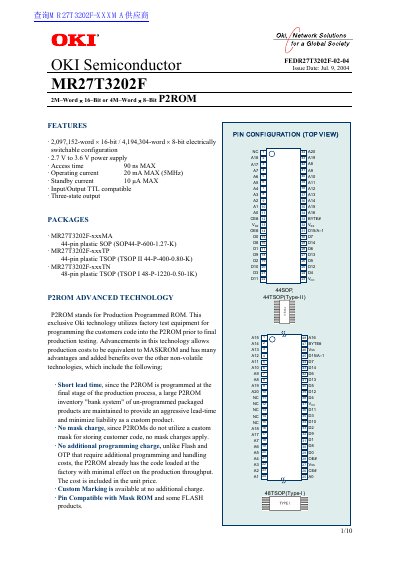

This document is a technical datasheet for the Oki Semiconductor MR27T3202F, which utilizes exclusive Oki P2ROM (Production Programmed ROM) technology. The device offers an electrically switchable configuration between 2M-Word x 16-Bit and 4M-Word x 8-Bit modes.
| Memory Capacity (16-Bit) | 2M-Word x 16-bit |
|---|---|
| Memory Capacity (8-Bit) | 4M-Word x 8-bit |
| Power Supply Voltage | 2.7 V to 3.6 V |
| Access Time (Max) | 90 ns |
| Operating Current (5MHz) | 20 mA MAX |
| Standby Current | 10 pA MAX |
The absolute maximum rating for the power supply voltage is 5 V.
The address cycle time and access times are a maximum of 90 ns.
