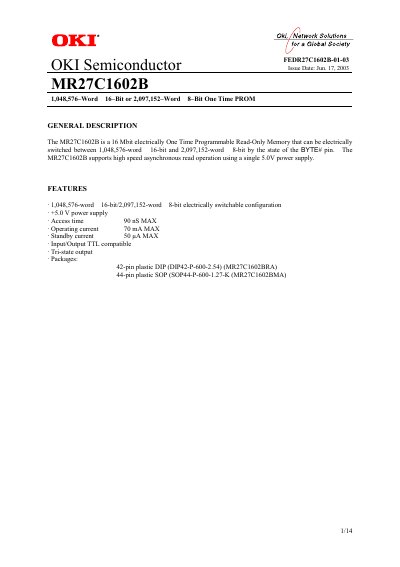

MR27C1602B is a 16 Mbit electrically One Time Programmable Read-Only Memory produced by OKI Semiconductor, which can be electrically switched between 1,048,576-word × 16-bit and 2,097,152-word × 8-bit by the state of the BYTE# pin. The MR27C1602B supports high speed asynchronous read operation using a single 5.0V power supply.
The Oki MR27C1602B is a 16 Mbit electrically One Time Programmable Read-Only Memory (OTP) that can be electrically switched between a 1,048,576-word x 16-bit configuration and a 2,097,152-word x 8-bit configuration via the BYTE# pin. It supports high-speed asynchronous read operations using a single 5.0V power supply and features TTL-compatible inputs and outputs.
| Memory Capacity | 1,048,576-word x 16-bit or 2,097,152-word x 8-bit |
|---|---|
| Power Supply Voltage | 5.0 V |
| Access Time | 90 ns MAX |
| Operating Current | 70 mA MAX |
| Standby Current | 50 pA MAX |
| Operating Temperature | 0 to 70 °C |
| Storage Temperature | -55 to 125 °C |
The configuration is switched by the state of the BYTE# pin.
The maximum access time is 90 ns.
Yes, the input/output is TTL compatible.
