Oki Semiconductor’s OD9601N, OD9602N, and OD9604N PD Preamp Module Family are surface-mount 1.3-µm, InGaAs PIN photo diodes combined with a transimpedance amplifier. The OD9601N operates at 1.25 Gbps in STM4/OC12/OC24 environments. The OD9602N operates at 622 Mbps in STM4/OC12 environments. The OD9604N operates at 2.488 Gbps in STM16/OC48 environments. These photo diode preamp modules are coupled to a single-mode fiber with a pigtail.

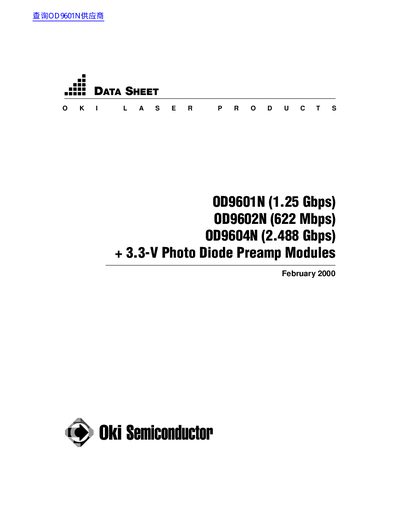

This datasheet describes the OD9601N, OD9602N, and OD9604N Photo Diode Preamp Module Family from Oki Semiconductor. These modules utilize 1.3-um InGaAs PIN photo diodes combined with a transimpedance amplifier and are designed for surface-mount Mini-DIL packages. They operate with a single +3.3-V power supply and provide a differential output signal.
| Operating Speed (OD9601N) | 1.25 Gbps |
|---|---|
| Operating Speed (OD9602N) | 622 Mbps |
| Operating Speed (OD9604N) | 2.488 Gbps |
| Peak-sensitivity wavelength | 1300 nm |
| Supply Voltage | +3.3 V |
| Package Type | 8-pin Mini-DIL |
| Operating Temperature | -40 to +85 °C |
| Fiber Type | 1.31-um single-mode fiber |
The peak-sensitivity wavelength is 1300 nm.
The OD9604N operates at 2.488 Gbps in STM16/OC48 environments.
