This document describes the features and characteristics of the PALCE16V8H-15JI product, including supplier information, technical specifications, and functional descriptions.

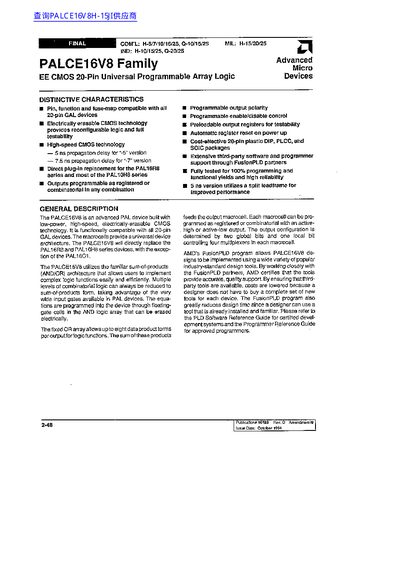

The AMD PALCE16V8 is an advanced universal PAL device built with low-power, high-speed, electrically-erasable CMOS technology. It features functionally compatible pinouts and fuse-maps with all 20-pin GAL devices, allowing for direct plug-in replacement of the PAL16R8 and PAL10H8 series.
The high-speed CMOS technology provides a 5 ns propagation delay for the *-5* version.
The Half Power option allows a maximum of 130 mA Icc.
The device has eight independently configurable macrocells labeled MC0 through MC7.
