The Am28F010A is a 1 Megabit Flash memory with high performance, low power consumption, compatibility with JEDEC standard, and features like erase and program.

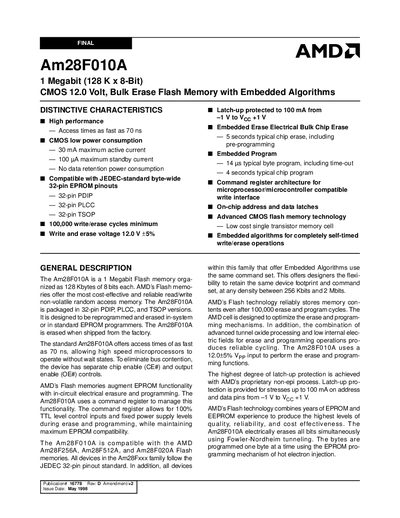

The document describes the Am28F010A, a 1 Megabit (128 K x 8-Bit) CMOS Flash Memory featuring Embedded Algorithms for self-timed write/erase operations. It is designed for in-system reprogramming and offers high performance with access times as fast as 70 ns.
| Capacity | 1 Megabit (128 K x 8-Bit) |
|---|---|
| Access Time | 70 ns minimum |
| Max Active Current | 30 mA |
| Max Standby Current | 100 uA |
| Write/Erase Cycles | 100,000 minimum |
| Operating Voltage (Vcc) | 5.0 V +/- 10% |
| Program Voltage (Vpp) | 12.0 V |
The typical chip erase time, including pre-programming, is five seconds.
Yes, it is compatible with JEDEC-standard byte-wide 32-pin EPROM pinouts.
