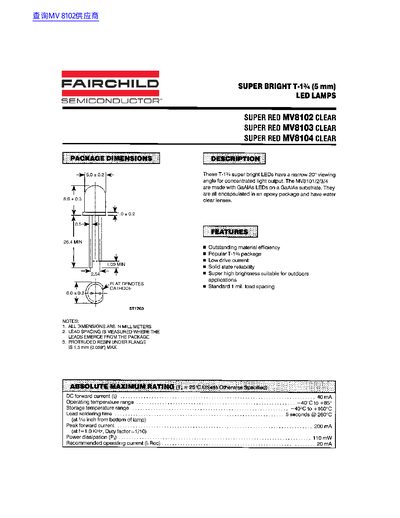

Fairchild Semiconductor MV8102/3/4 Super Red LED Datasheet

This document introduces the product MV8102 from Fairchild Semiconductor Corporation. The product is a Super Bright T-1 3/4 (5mm) LED lamp, which features high reliability, high brightness, and high efficiency.

Brand: Fairchild
Category: LED Driver Controller
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 232 KB
Published: 07 June, 2012
Updated: 28 September, 2023
Model: MV3
MD5 checksum: 117DA7CE2981D016693ECB40A3555698
PDF: Fairchild Semiconductor MV8102/3/4 Super Red LED Datasheet PDF

About this manual

This document provides technical specifications for the Fairchild Semiconductor Super Red MV8102, MV8103, and MV8104 LED lamps. These devices utilize GaAlAs technology with clear lenses and are designed for high brightness applications requiring a narrow 20-degree viewing angle.

What's inside

Absolute Maximum Rating
Electro-Optical Characteristics
Typical Curves
Package Dimensions
Disclaimer

Specifications

Viewing Angle	20 degree
Peak Wavelength (MV8102)	660 nm
Luminous Intensity (MV8103)	630 - 940 mcd

Frequently asked questions

What is the viewing angle for these LEDs?

These T-1 3/4 super bright LEDs have a narrow 20 degree viewing angle.

What are the typical luminous intensity values for models MV8102, MV8103, and MV8104?

The typical luminous intensities are 250-370 mcd, 630-940 mcd, and 1000-1500 mcd respectively.
