The document describes a capacitor with a temperature range of -40℃ to +105℃ and a voltage range of 160 to 250V.DC. The capacitor has stable capacitance value, low-temperature stability, and low leakage current.

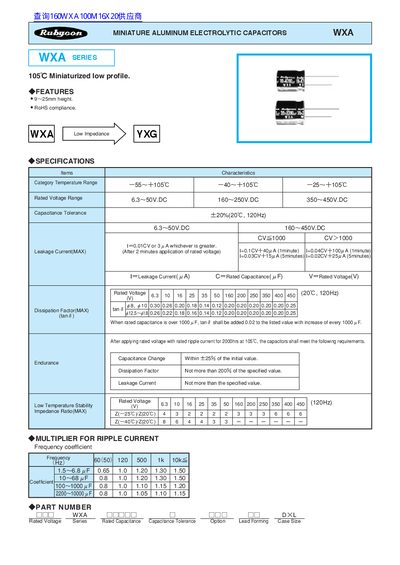

This document provides technical data for the Rubycon WXA series of miniature aluminum electrolytic capacitors. Key features include a low profile height ranging from 9mm to 25mm and full RoHS compliance.
The datasheet details various electrical specifications such as temperature ranges, capacitance tolerance, leakage current limits, and dissipation factors across different rated voltages. It also includes dimensional drawings for the sleeve type capacitors.
| Height Range | 9~25mm |
|---|---|
| RoHS Compliance | Compliant |
| Temperature Range (Standard) | -55~+105C |
| Capacitance Tolerance | +/-20% |
| Leakage Current Condition | After 2 minutes application of rated voltage |
The WXA series features a low profile with a maximum height of 25mm.
Leakage current is measured after applying rated voltage for 2 minutes.
