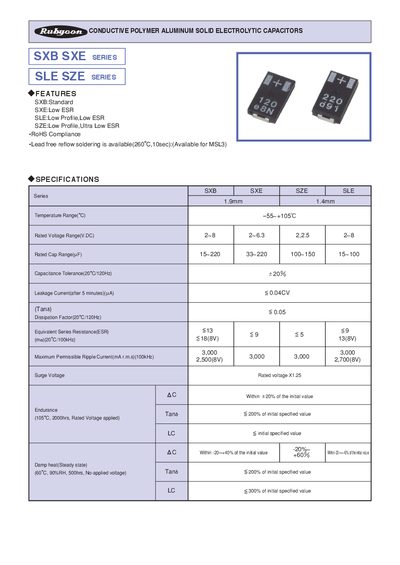

SXB, SXE, SLE, SZE conductive polymer aluminum solid electrolytic capacitors feature RoHS compliance and lead free reflow soldering.
The document provides an overview of Rubycon's conductive polymer aluminum solid electrolytic capacitor families: SXB (standard), SXE (low ESR), SLE (low profile, low ESR) and SZE (low profile, ultra low ESR). It lists key features such as eRoHS compliance and availability of lead‑free reflow soldering (260 °C, 10 s).
Detailed specifications are given for each series, including temperature range, rated voltage, ESR values, ripple current capability and standard package sizes with part numbers. The tables allow designers to select the appropriate part based on electrical and mechanical requirements.
| Temperature Range | -55 °C to +105 °C |
|---|---|
| Rated Voltage Range | 2 V to 8 V |
| Lead‑free Reflow Soldering | 260 °C, 10 s |
Yes, the capacitors meet eRoHS compliance.
They operate from –55 °C up to +105 °C.
