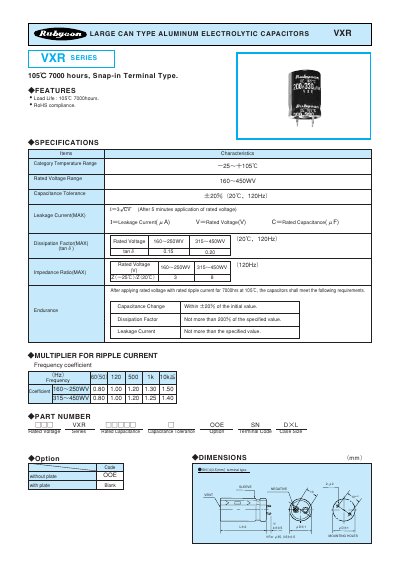

This document presents the specifications and characteristics of the VXR series large can type aluminum electrolytic capacitors, including temperature range, rated voltage range, capacitance tolerance, leakage current, dissipation factor, and endurance.
The VXR series from Rubycon provides large‑can aluminum electrolytic capacitors with a wide temperature range and high voltage capability. Key features include a 105 °C load life of 7000 hours, RoHS compliance, and various terminal options.
The datasheet lists detailed specifications such as temperature range, rated voltage, capacitance tolerance, leakage current, dissipation factor, and dimensions for each standard size. It also includes part numbers, ripple‑current ratings, and standard mounting hole dimensions.
| Category Temperature Range | –25 °C to +105 °C |
|---|---|
| Rated Voltage Range | 160 V to 450 V |
| Capacitance Tolerance | ±20 % (20 °C, 120 Hz) |
| Load Life | 7000 hours at 105 °C |
| Dissipation Factor (max) | 0.15 – 0.20 |
The capacitors are rated for a load life of 7000 hours at 105 °C.
They operate from –25 °C up to +105 °C.
The rated voltage range is 160 V to 450 V.
Yes, they meet RoHS compliance.
