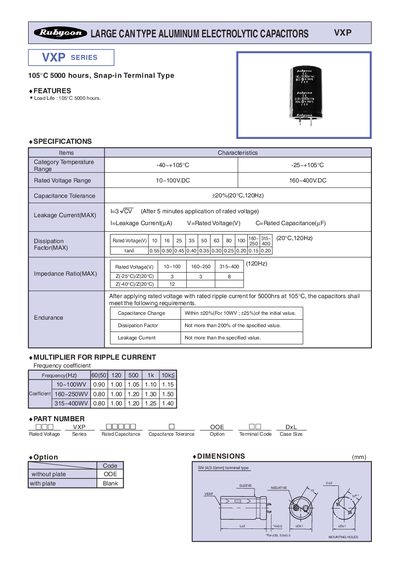

This document is the specification of VXP series aluminum electrolytic capacitors, mainly introduces the working temperature range, rated voltage range, capacitance tolerance, leakage current, dissipation factor, endurance, impedance ratio and other characteristics of the series capacitors
The VXP series from Rubycon provides large can‑type aluminum electrolytic capacitors with a load life of 105 °C for 5000 hours. Features include a wide rated voltage range, high ripple‑current capability, and various case sizes.
The document lists detailed specifications such as temperature limits, voltage ranges, capacitance tolerance, leakage current, dissipation factor, and rated ripple currents for multiple case dimensions.
| Temperature Range | -40 °C to +105 °C |
|---|---|
| Rated Voltage Range | 10 V‑100 V DC, 160 V‑400 V DC |
| Capacitance Tolerance | +20 % (20 °C, 120 Hz) |
| Dissipation Factor (max) | tanδ ≤ 0.55 |
| Load Life | 105 °C for 5000 hours |
The VXP capacitors are rated for a load life of 105 °C for 5000 hours.
They operate from –40 °C up to +105 °C.
The series covers 10 V‑100 V DC and 160 V‑400 V DC.
