The features of MMB series metallized polyester film capacitors are: small size, light weight, high reliability, self-healing and UL94 V-0 flame retardant.
The MMB series offers metallized polyester film capacitors with self‑healing capability, excellent reliability and RoHS compliance. They are coated with flame‑retardant (UL94 V‑0) epoxy resin and operate over a wide temperature range.

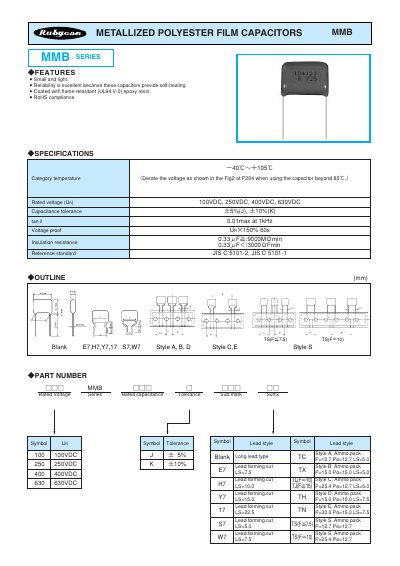

The datasheet lists rated voltages of 100 VDC, 250 VDC, 400 VDC and 630 VDC, capacitance tolerances of ±5 % (J) or ±10 % (K), and provides detailed dimensions, packaging quantities and permissible current for various frequencies.
| Temperature range | -40 °C to +105 °C |
|---|---|
| Rated voltage options | 100 VDC, 250 VDC, 400 VDC, 630 VDC |
| Capacitance tolerance | ±5 % (J) or ±10 % (K) |
| Reference standard | JIS C 5101‑2, JIS C 5101‑1 |
| Flame‑retardant coating | UL94 V‑0 epoxy resin |
They operate from –40 °C to +105 °C.
The series is offered at 100 VDC, 250 VDC, 400 VDC and 630 VDC.
Capacitance tolerance is ±5 % (code J) or ±10 % (code K).
Yes, the capacitors meet RoHS compliance.
