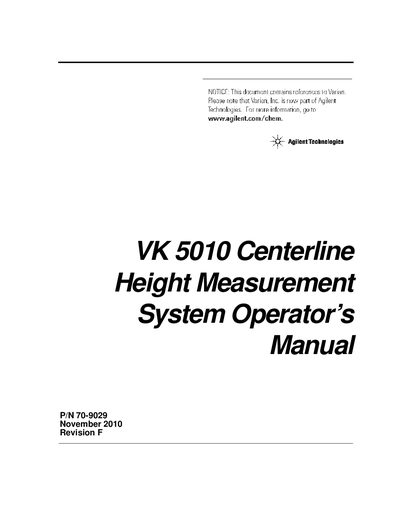

This document is the operator's manual for the VK 5010 Centerline Height Measurement System, describing the features and characteristics of the product.
The Agilent VK 5010 is a measurement system designed to determine centerline heights. This Operator's Manual covers safety practices, introduction to the device specifications, and detailed instructions on setting up the unit with various attachments such as the Centerline Offset Gauge and Paddle/Basket Height Gauge.
The guide explains how to operate the main menu, initialize the system, view and store measurement data, and perform specific tests like height measurement and centerline measurement. It also includes sections on printing reports, sending data via communication ports, troubleshooting common issues, and performing periodic maintenance and calibration.
| Document Part Number | 70-9029 |
|---|---|
| Revision Level | F |
The part number for this Operator's Manual is 70-9029.
The system is manufactured by Agilent Technologies, which acquired Varian, Inc.
