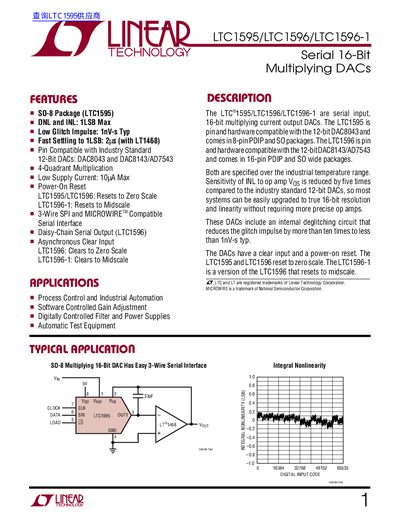

The LTC1595/LTC1596/LTC1596-1 are serial input, 16-bit multiplying current output DACs. They feature low DNL and INL, low glitch impulse, fast settling to 1LSB, and compatibility with industry standard 12-bit DACs.
The LTC1595/LTC1596/LTC1596-1 are serial input, 16-bit multiplying current output DACs designed for process control, industrial automation, and automatic test equipment. They feature low supply current (10uA Max), power-on reset functionality, and compatibility with industry-standard 12-bit DACs like the DAC8043.
These devices include an internal deglitching circuit that reduces glitch impulse to less than 1nV-s typical. The LTC1596 offers daisy-chain serial output capabilities, while all variants support 3-wire SPI and Microwire compatible interfaces.
| Supply Current | 10uA Max |
|---|---|
| Glitch Impulse | < 1nV-s Typ |
The LTC1596 resets to zero scale, while the LTC1596-1 version resets to midscale.
They support 3-Wire SPI and Microwire compatible serial interfaces.
