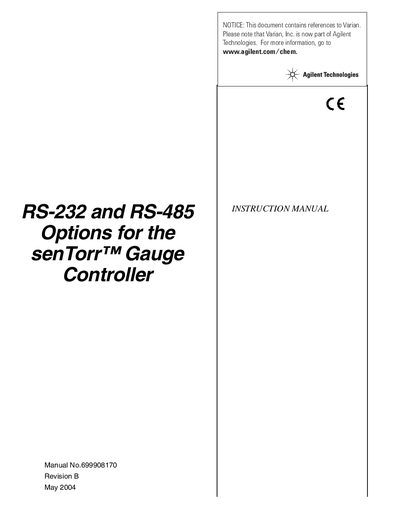

This document describes the features and characteristics of the Vacuum Technologies RS-232 and RS-485 options for the senTorr Gauge Controller.
This manual provides installation procedures for the RS-232 and RS-485 serial communication boards used with the senTorr Gauge Controller. It details how to physically install the option cards into the controller chassis and connect them to external devices via pin configurations.
The guide also covers operational settings, including how to configure the baud rate and address for the serial ports. Additionally, it defines the command syntax required to communicate with the gauge controller through these serial interfaces.
Products are warranted against defects in materials and workmanship for twelve (12) months from the date of shipment.
Claims must include the product serial number, the date of shipment, and a full description of the circumstances giving rise to the claim.
