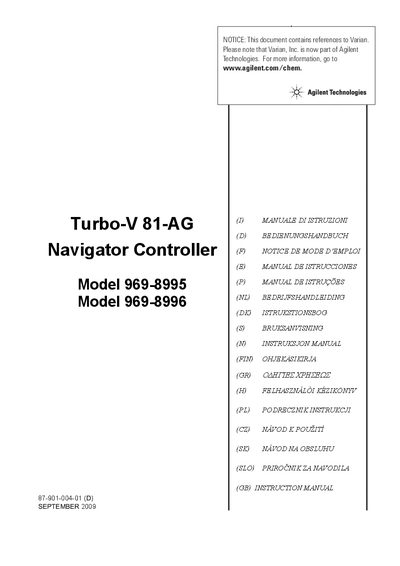

This document provides instructions for using the Vacuum Technologies Turbo-V 81-AG Navigator Controller Model 969-8995 Model 969-8996, including technical information, specifications, installation, power connection, and controller connection.
The document is a multi-language user manual (including Italian) for the Agilent Technologies Turbo-V 81 AG Navigator Controller. It covers safety warnings, installation requirements, environmental conditions, and operational instructions for models 969-8995 and 969-8996.
Key sections include controller descriptions, specifications, outline diagrams of the rear panel, power connection details (specifically noting the requirement for a three-wire cable for model 969-8996), and communication protocols via RS232 or RS485. This manual is written in Italian.
| Operating Temperature Range | + 5 °C to +45 °C |
|---|---|
| Relative Humidity (Operation) | 0 - 90% (non condensante) |
| Storage Temperature Range | -20 °C to +70°C |
| Relative Humidity (Storage) | 0 - 95% (non condensante) |
Model 969-8996 must be powered using a three-wire power cord with an internationally approved plug.
The controller can be remotely controlled via a computer host connected with an RS232 or RS485 serial line.
