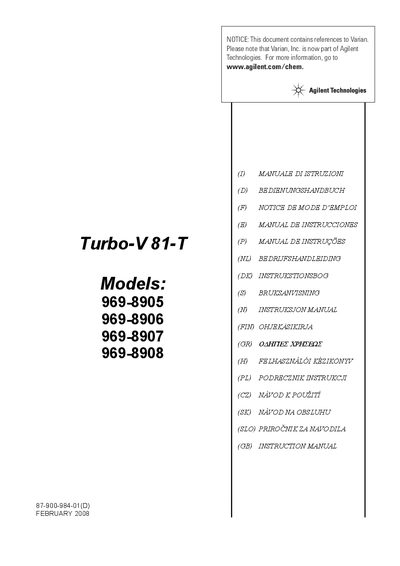

This manual describes the operation and maintenance of the Turbo-V 81-T Turbo Molecular Pump.
The document is a comprehensive user guide for the Agilent Technologies (formerly Varian) Turbo-V 81-T series of turbomolecular pumps. It covers safety precautions, storage conditions, installation procedures including inlet screens and cooling kits, and electrical connections.
The manual details technical specifications such as maximum rotational speed and operating temperature ranges. It also includes instructions for using the pump with various controllers (Navigator or Standard Rack) and provides information on accessories, spare parts, and troubleshooting.
| Maximum rotational speed | 80,000 rpm max |
|---|---|
| Storage temperature range | -20 °C to 70 °C |
| Operating humidity | 0 to 95% non-condensing |
It is designed for high and ultra-high vacuum applications capable of pumping any type of gas or non-corrosive gaseous compound.
No, these pumps are not suitable for pumping liquids or solid particles.
The storage time for a turbomolecular pump is 10 months from the shipping date.
