The manual introduces the technical information of the TV 301-P Navigator controller, including controller description, technical specifications, outline diagram, interconnection, input power connection, RS 232/RS 485 communication description, window meaning, PROFIBUS protocol, mechanical installation and other contents.

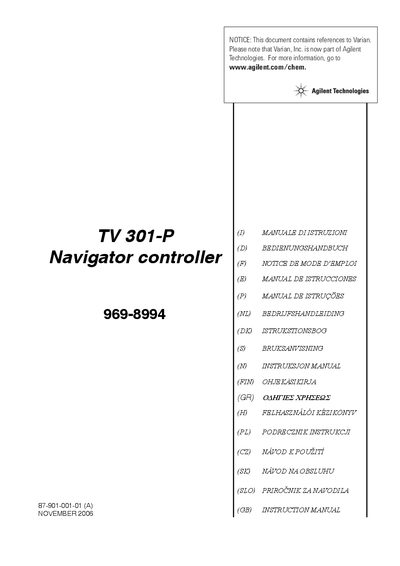

The document is a multi-language user manual (Italian edition shown) for the Varian/Agilent Technologies TV301-P Navigator Controller. It includes general safety notices, customer service information, and detailed instructions for use in Italian.
Key sections cover installation requirements such as environmental conditions (temperature and humidity), electrical connection precautions, and storage guidelines for turbomolecular pumps. The manual also outlines operational procedures, technical specifications, interconnection details, and communication protocols including RS232/RS485. This manual is written in Italian.
| Operating Temperature | +5 °C to +40°C |
|---|---|
| Relative Humidity (Operation) | 0 - 95% non-condensing |
| Storage Temperature | -20 °C to +70°C |
| Storage Humidity | 0 to 95% non-condensing |
The device must operate within a temperature range of +5 °C to +40°C and relative humidity between 0% and 95% non-condensing.
The storage time limit for a Varian turbomolecular pump is 10 months from the shipping date.
The controller belongs to installation Category II (overvoltage) according to EN 61010-1 regulations.
