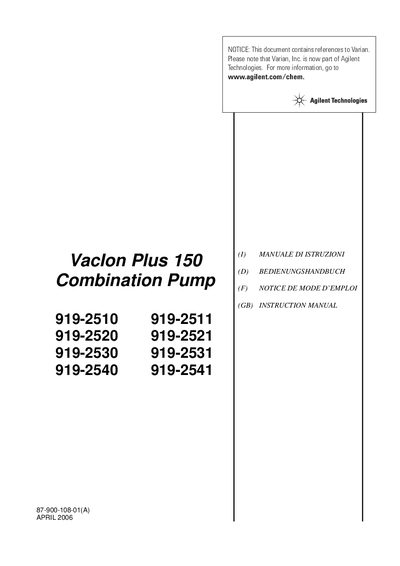

This document is an instruction manual for Agilent Technologies' VacIon Plus 150 Combination Pump. It describes the pump's components and how to use it.
This document serves as an instruction manual for the Vaclon Plus 150 Combination Pump. The pump is described as a combination of the Vaclon Plus 150 pump, a laterally mounted Cryopanel, and an installed heater unit available in 120 Vac or 220 Vac configurations.
The document lists eight specific models (919-2510 through 919-2541) differentiated by their internal valve types (Diode, Triode, Starcell) and heater voltage. It also includes a form for requesting corrective action regarding product problems.
The product consists of the Vaclon Plus 150 pump combined with a laterally mounted Cryopanel and an installed heater.
The unit includes a heater that operates at either 120 Vac or 220 Vac.
You must drain any oils, purge all gases, wipe off excess residues, and package the equipment to prevent shipping damage.
