The PTF 10153 is a 60-watt GOLDMOS FET intended for CDMA and TDMA applications from 1.8 to 2.0 GHz. It operates with 40% efficiency and 11.5 dB minimum gain. Nitride surface passivation and full gold metallization ensure excellent device lifetime and reliability.

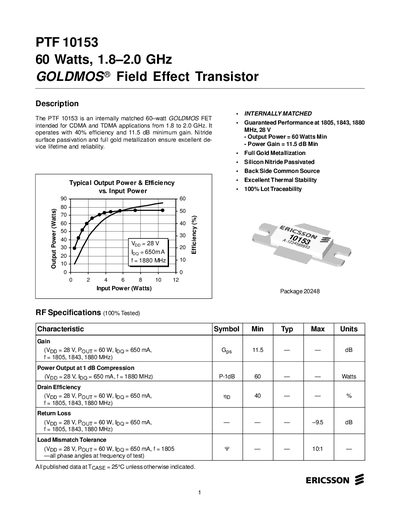

The document describes the Ericsson PTF 10153, an internally matched 60-watt GOLDMOS Field Effect Transistor intended for CDMA and TDMA applications operating from 1.8 to 2.0 GHz. The device features nitride surface passivation and full gold metallization to ensure excellent device lifetime and reliability.
| Output Power (Min) | 60 Watts |
|---|---|
| Power Gain (Min) | 11.5 dB |
| Operating Frequency Range | 1.8 to 2.0 GHz |
| Package Type | 20248 |
The guaranteed minimum output power is 60 Watts.
The maximum operating junction temperature is 200 degrees Celsius.
