This document introduces the features and characteristics of the MM74HC4049 and MM74HC4050 logic level converters. These two devices are based on advanced silicon-gate CMOS technology and have a modified input protection structure that enables these parts to be used as logic level translators that will convert high level logic to a low level logic while operating from the low logic supply. In addition, each part can be used as a simple buffer or inverter without level translation.

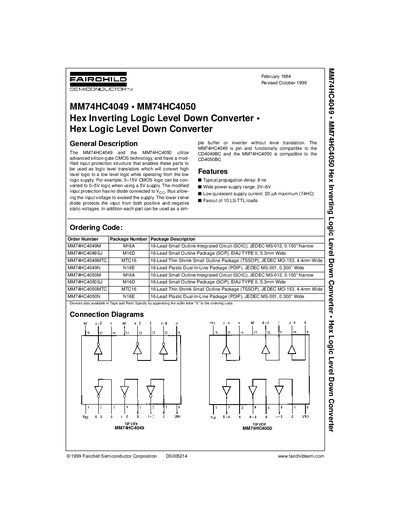

This document is a technical datasheet for the Fairchild Semiconductor MM74HC4049 and MM74HC4050, which are Hex Inverting Logic Level Down Converters. These devices utilize advanced silicon-gate CMOS technology to convert high-level logic (e.g., 0-15V) to low-level logic (e.g., 0-5V) while operating from a lower supply voltage.
| Typical propagation delay | 8 ns |
|---|---|
| Wide power supply range | 2V-6V |
| Low quiescent supply current | 20 pA maximum (74HC) |
| Fanout of LS-TTL loads | 10 |
| Operating Temperature Range (Ta) | -40°C to +85°C |
The maximum DC output current per pin (Iout) is 25 mA.
The device operates within a temperature range of -40°C to +85°C.
The typical maximum propagation delay is 8 ns at a supply voltage of 5V.
