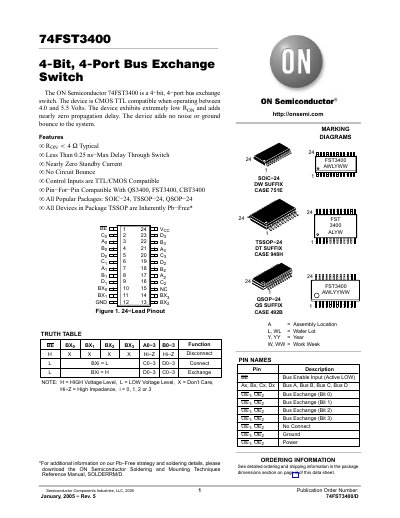

The ON Semiconductor 74FST3400 is a 4-bit, 4-port bus exchange switch. The device is CMOS TTL compatible when operating between 4.0 and 5.5 Volts. The device exhibits extremely low RON and adds nearly zero propagation delay. The device adds no noise or ground bounce to the system.
The document describes the ON Semiconductor 74FST3400, a 4-bit, 4-port bus exchange switch designed for CMOS TTL compatible operation between 4.0 and 5.5 Volts. The device offers extremely low on-resistance (Ron < 4 Ohms) and adds nearly zero propagation delay to the system.
| Supply Voltage (Operating) | 4.0 to 5.5 V |
|---|---|
| On Resistance | < 4 Ohms (Typical) |
| Propagation Delay | Less than 0.25 ns |
| Operating Temperature Range | -40 to +85 °C |
| Storage Temperature Range | -65 to +150 °C |
Yes, the device is CMOS TTL compatible when operating between 4.0 and 5.5 Volts.
The device is available in SOIC-24, TSSOP-24, and QSOP-24 packages.
No, the device adds no noise or ground bounce to the system.
