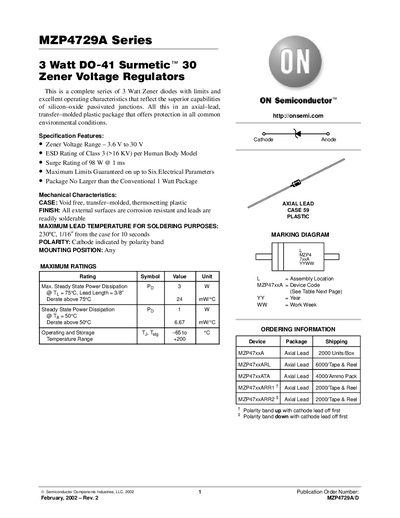

This document describes a series of 3-watt Zener diodes with excellent operating characteristics and silicon-oxide passivated junctions. The product is protected in an axial-lead, transfer-molded plastic package and offers superior capabilities.
The document provides a complete series of 3 Watt Zener diodes with limits and excellent operating characteristics. These devices feature silicon-oxide passivated junctions in an axial-lead, transfer-molded plastic package (DO-41 Case 59) designed to offer protection in all common environmental conditions.
| Zener Voltage Range | 3.6 V to 30 V |
|---|---|
| ESD Rating | >16 KV per Human Body Model |
| Surge Rating | 98 W @ 1 ms |
| Operating and Storage Temperature Range | -65 to +200°C |
The maximum lead temperature for soldering purposes is 230°C, measured 1/16″ from the case for 10 seconds.
Polarity is indicated by a polarity band on the package.
