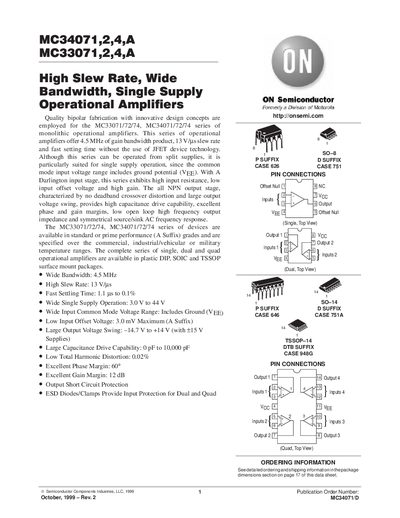

The MC33071/72/74, MC34071/72/74 series are single-chip operational amplifiers using high-quality bipolar fabrication technology and innovative design concepts.
This document describes the MC33071/72/74 and MC34071/72/74 series of monolithic operational amplifiers. These devices utilize quality bipolar fabrication with innovative design concepts, offering a 4.5 MHz gain bandwidth product and a 13 V/s slew rate without JFET technology.
| Gain Bandwidth Product | 4.5 MHz |
|---|---|
| Slew Rate | 13 V/s |
| Settling Time (0.1%) | 1.1 us |
| Supply Voltage Range | 3.0 V to 44 V |
| Input Offset Voltage (Max) | 3.0 mV |
The input common mode voltage range includes ground potential.
Yes, the devices feature output short circuit protection.
