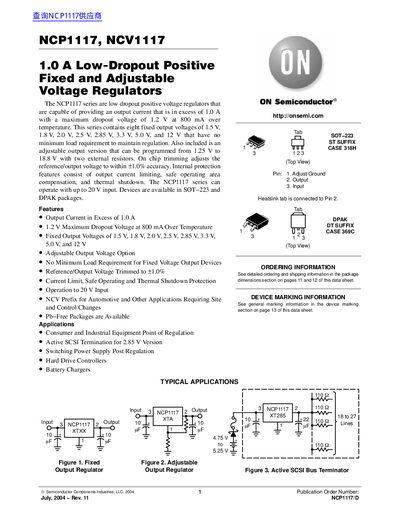

NCP1117, NCV1117 1.0A Low-Dropout Positive Fixed and Adjustable Voltage Regulators
The NCP1117 series consists of low dropout positive voltage regulators capable of providing an output current in excess of 1.0 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. The series includes eight fixed output voltages ranging from 1.5 V to 12 V, as well as an adjustable version programmable from 1.25 V to 18.8 V using two external resistors.
| Output Current | In Excess of 1.0 A |
|---|---|
| Maximum Dropout Voltage | 1.2 V at 800 mA |
| Fixed Output Voltages | 1.5 V, 1.8 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V |
| Adjustable Output Range | 1.25 V to 18.8 V |
| Reference Voltage Accuracy | ±1.0% |
| Input Voltage Operation | Up to 20 V |
| Packages Available | SOT−223 and DPAK |
The device is capable of providing an output current that is in excess of 1.0 A.
The series contains eight fixed output voltages: 1.5 V, 1.8 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V.
The NCP1117 series can operate with up to 20 V input.
