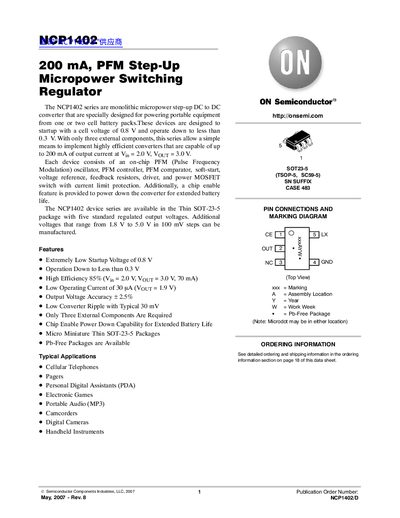

The NCP1402 is a 200mA, PFM step-up micropower switching regulator from Semiconductor Components Industries. It features an extremely low startup voltage (0.8V), high efficiency (85%), low operating current (30μA), high output voltage accuracy (±2.5%), low converter ripple (typical 30mV), and requires only three external components.
The NCP1402 series are monolithic micropower step-up DC to DC converters designed for powering portable equipment from one or two cell battery packs. These devices can start up with a cell voltage of 0.8 V and operate down to less than 0.3 V, utilizing only three external components.
| Output Current | 200 mA |
|---|---|
| Startup Voltage | 0.8 V |
| Operating Voltage (Min) | < 0.3 V |
| Efficiency | 85% |
| Operating Current | 30 uA |
| Output Voltage Accuracy | +/- 2.5% |
| Ripple Voltage (Typ) | 30 mV |
| Package Type | Thin SOT-23-5 |
The device can start up with a cell voltage of 0.8 V.
Only three external components are required to implement the converter.
The device operates from -40°C to +85°C.
