M68HC908JL16 is a microcontroller produced by Freescale Semiconductor. It has SuperFlash® technology and 32K bytes of flash memory.

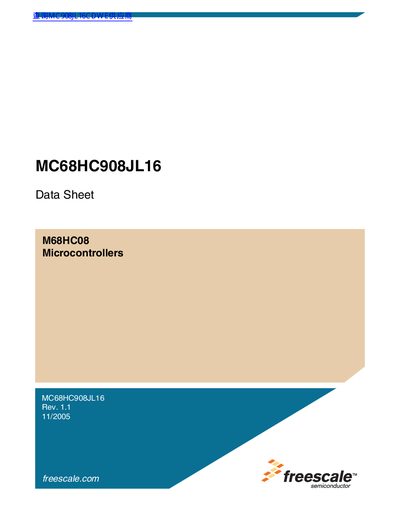

This document is a technical datasheet for the Freescale Semiconductor MC68HC908JL16 microcontroller. It provides detailed information on the device's architecture, including its general description, memory map, configuration registers, and system integration module.
The text covers specific peripheral modules such as the Oscillator (OSC), Timer Interface Module (TIM), Serial Communications Interface (SCI), Multi-Master IIC Interface (MMIIC), Analog-to-Digital Converter (ADC), and various interrupt handling mechanisms. It also details electrical specifications and ordering information.
| Document Revision | 1.1 |
|---|---|
| Publication Date | November 2005 |
The order part number changed from MC908JL16CFAE to MC908JL16CFJE.
This document was released in November 2005.
