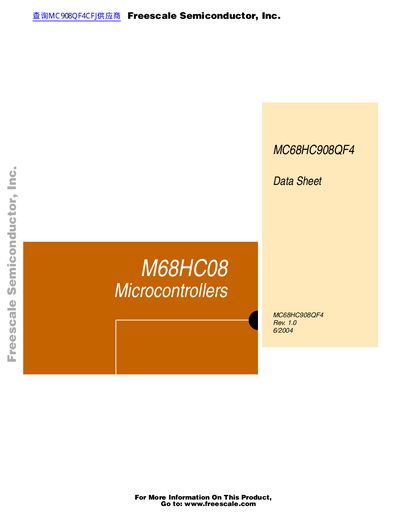

This document is a data sheet for the M68HC08 microcontroller MC68HC908QF4. It describes the features and characteristics of the product.
This document is a comprehensive technical data sheet for the MC68HC908QF4 microcontroller from Freescale Semiconductor. It provides detailed information regarding the device's architecture, including its memory organization (RAM and FLASH), analog-to-digital converter (ADC) capabilities, auto wakeup module (AWU), and various interrupt modules such as External Interrupt (IRQ) and Keyboard Interrupt Module (KBI).
| Operating temperature range (0°C code) | -40 to 85 °C |
|---|---|
| Maximum junction temperature | 150 °C |
| Thermal resistance (32-pin TQFP) | 72 °C/W |
| Maximum current per pin (excluding PTA0–PTA5, VDD, and VSS) | 15 mA |
The maximum junction temperature (TJM) is 150 °C.
It operates from –40 to 85°C or from 0 to 70°C depending on the voltage.
