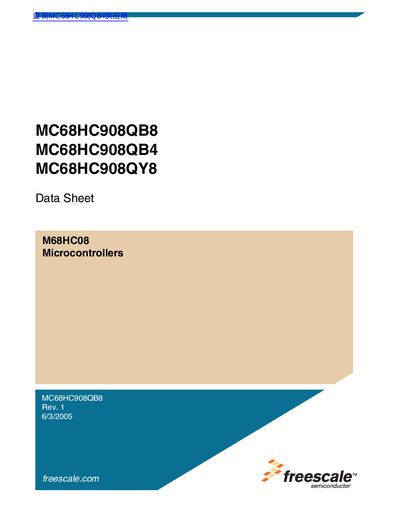

This document is a datasheet for M68HC08 microcontrollers, providing information on the features and characteristics of MC68HC908QB8, MC68HC908QB4, and MC68HC908QY8.
This document is a comprehensive data sheet for the Freescale Semiconductor MC68HC908QB8, MC68HC908QB4, and MC68HC908QY8 8-bit microcontrollers. It provides detailed technical information including general descriptions, memory architecture (RAM and SuperFlash), and various peripheral modules such as the Analog-to-Digital Converter (ADC10), Auto Wakeup Module (AWU), Enhanced Serial Communications Interface (ESCI), and Timer Interface Module (TIM).
| Supply Voltage (VDD) | -0.3 to +6.0 V |
|---|---|
| Operating Temperature Range | -40 to +125 °C |
| Maximum Current per Pin | ±15 mA |
The device can be exposed to a supply voltage up to +6.0 V without permanent damage.
This specific model operates between -40 and +125 degrees Celsius.
