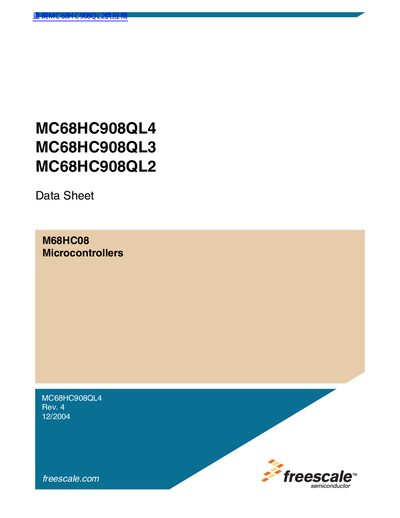

This document is a data sheet for M68HC08 microcontrollers, introducing the features and characteristics of MC68HC908QL4, MC68HC908QL3, and MC68HC908QL2.
This document is a comprehensive data sheet for the Freescale MC68HC908QL4, MC68HC908QL3, and MC68HC908QL2 microcontroller units (MCUs). It provides detailed information on the device architecture, including memory organization, analog-to-digital conversion capabilities, timer interfaces, and various interrupt modules such as LIN and KBI. The datasheet also covers low-power modes like Wait and Stop to optimize energy consumption.
| Operating temperature range | -40 to +125 °C |
|---|---|
| Maximum supply voltage | +6.0 V |
| Storage temperature range | -55 to +150 °C |
The maximum junction temperature (TJM) for these microcontrollers is 150 °C.
Yes, the datasheet lists specific operating temperature ranges (TA) from -40 to +85°C up to -40 to +125°C.
