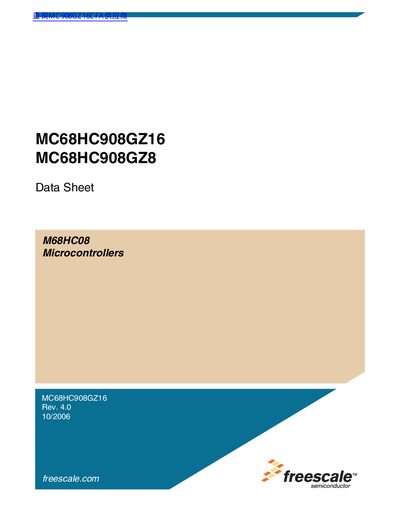

This data sheet provides detailed information on the M68HC908GZ16 and M68HC908GZ8 MCUs, including electrical characteristics, pin configuration, timing, register descriptions, and peripheral module descriptions.
This document is a comprehensive technical datasheet for the MC68HC908GZ16 and MC68HC908GZ8 microcontrollers manufactured by Freescale Semiconductor. It provides detailed information on device variations, memory architecture, peripheral modules such as the Enhanced Serial Communications Interface (ESCI) and MSCAN08 controller, and various low-power modes including Wait and Stop modes.
The datasheet includes extensive sections on electrical specifications for both 5-Vdc and 3.3-Vdc operating conditions, thermal characteristics, and mechanical ordering information. It serves as a reference guide for engineers designing systems using these specific microcontroller models.
| Operating temperature range | -40 to +125 °C |
|---|---|
| Supply voltage (5V) | 5.0 ±10% |
| Maximum current per pin | ± 15 mA |
| Storage temperature | -55 to +150 °C |
The document covers the MC68HC908GZ16 and MC68HC908GZ8 microcontrollers.
The absolute maximum rating for the supply voltage VDD is + 6.0 V.
