BNC male 3PC crimp RG-58 connector, 50 ohm, 10 pcs/pack

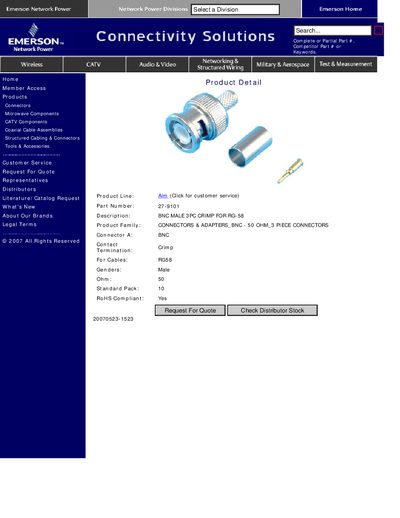

The document is a catalog page from Emerson Network Power's Connectivity Solutions division, focusing on RF connectors and adapters. It specifically lists the part number 27-9101 as a '3 Piece Crimp-On 50 Ohm BNC Connector' designed for RG-58 cable.
Technical specifications provided include an impedance of 50 ohms, a frequency range of 0-2 GHz, and a working voltage of 500 volts RMS. The connector features a zinc body with nickel plating and gold-plated contacts.
| Impedance | 50 ohms |
|---|---|
| Frequency range | 0-2 GHz with low reflection |
| Working voltage | 500 volts, RMS at sea level |
| Contact resistance (Outer) | 0.2 milliohms |
| Contact resistance (Center) | 2.1 milliohms |
| Insulation resistance | 5,000 megohms minimum |
| Dielectric withstanding voltage | 1,500 volts, RMS at sea level |
The connector is designed to be crimped onto RG-58 and RG-141 cables.
The force needed to engage or disengage the connector must not exceed 3 lbs.
