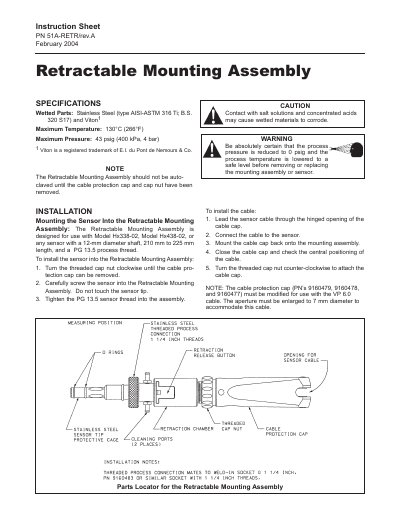

Rosemount Analytical Hx338 Retractable Mounting Assembly Instruction Sheet

This manual describes the specifications, installation and use of the Retractable Mounting Assembly.

Brand: Emerson
Category: Industrial Robot
Document type: User Manual
Language: English
Pages: 2
File format: PDF
File size: 63 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: D80DF25C1F4B9AEA0FC6145C2A0D8307
PDF: Rosemount Analytical Hx338 Retractable Mounting Assembly Instruction Sheet PDF

About this manual

The document provides specifications for the Retractable Mounting Assembly, including wetted materials (Stainless Steel AISI-ASTM 316 Ti and Viton), maximum temperature (130°C), and maximum pressure (43 psig). It details the installation process for mounting the sensor into the assembly and connecting the cable, noting specific requirements for the Hx338-02 model and 12-mm diameter shaft sensors.

What's inside

Specifications
Installation
Mounting the Sensor
Installing the Cable
Mounting into the Process
Inserting the Sensor
Cleaning and Maintenance
Replacing O-rings
Safety Rods

Specifications

Wetted Parts Material	Stainless Steel (type AISI-ASTM 316 Ti; B.S. 320 S17) and Viton
Maximum Temperature	130°C (266°F)
Maximum Pressure	43 psig (400 kPa, 4 bar)
Compatible Sensor Thread	PG 13.5

Frequently asked questions

What is the maximum temperature for the Retractable Mounting Assembly?

The maximum temperature is 130°C (266°F).

What type of stainless steel is used for the wetted parts?

The wetted parts are made of Stainless Steel type AISI-ASTM 316 Ti.

What is the maximum pressure rating for the assembly?

The maximum pressure is 43 psig (400 kPa, 4 bar).
