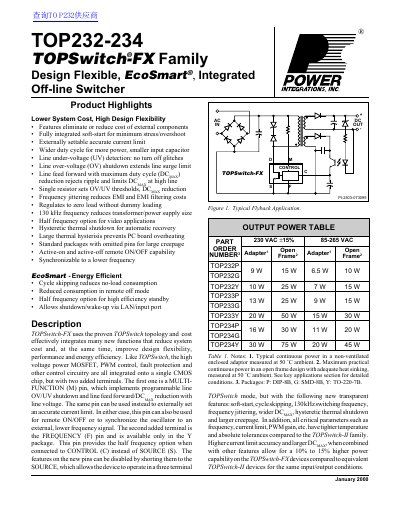

Integrations TOP232-234 TOPSwitch-FX Family Datasheet

About this manual

The document describes the TOPSwitch-FX Family from Integrations, Inc., which uses a proven topology to integrate high voltage power MOSFETs, PWM control, and fault protection onto a single CMOS chip. Key innovations include two added terminals: a MULTI-FUNCTION (M) pin for programmable line OV/UV shutdown or current limiting, and an optional FREQUENCY (F) pin in the Y package for half-frequency operation.

What's inside

• Product Highlights
• Pin Functional Description
• Output Power Table
• Application Examples
• Key Application Considerations
• Product Specifications

Frequently asked questions

What is the maximum output power of the TOP234Y model at 230 VAC?

The TOP234Y model provides a maximum output power of 75 W at 230 VAC.

What switching frequency is selected when the FREQUENCY pin is connected to the CONTROL pin?

Connecting the FREQUENCY pin to the CONTROL pin selects a switching frequency of 65 kHz.

How does the device operate if the MULTI-FUNCTION pin is connected to the SOURCE pin?

Connecting the MULTI-FUNCTION pin to the SOURCE pin disables all functions on that pin and makes the device operate in simple three terminal mode.
