The D32FU series of surface-mounted fixed inductors have a size of 3.5mm x 3.5mm x 2.2mm, an rated inductance range of 330µH to 3300µH, a DC resistance of less than 100mΩ, a maximum working current of 2.7A and a maximum working temperature of 105℃. They comply with the RoHS standard.

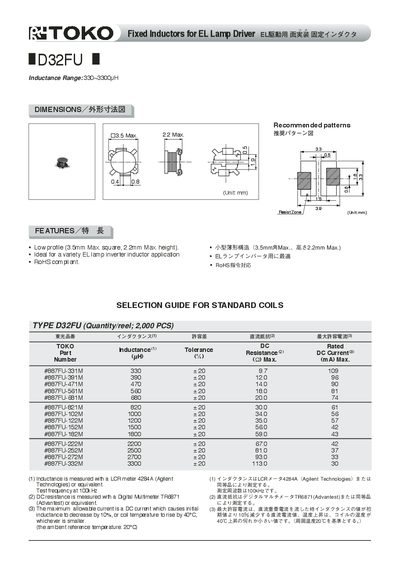

The TOKO D32FU series provides low‑profile fixed inductors designed for EL lamp inverter applications. Each part is RoHS compliant and features a compact size of up to 3.5 mm square and 2.2 mm height.
The document lists the inductance values, tolerance, DC resistance, and maximum allowable current for each part number, together with measurement methods and test conditions. This manual is written in Japanese.
| Inductance (example part #887FU-331M) | 330 µH |
|---|---|
| Maximum dimensions | 3.5 mm square, 2.2 mm height |
| RoHS compliance | Yes |
| Inductance test frequency | 100 kHz |
The inductors have a maximum square dimension of 3.5 mm and a maximum height of 2.2 mm.
