The DS106CB series is a surface mount, magnetically shielded inductor with low DC resistance and high current capability. It is ideal for a variety of DC-DC converter applications.
The DS106CB series are magnetically shielded, surface‑mount fixed inductors designed for high‑current DC‑DC converter applications. They offer low DC resistance, RoHS compliance, and a compact size suitable for a variety of circuits.

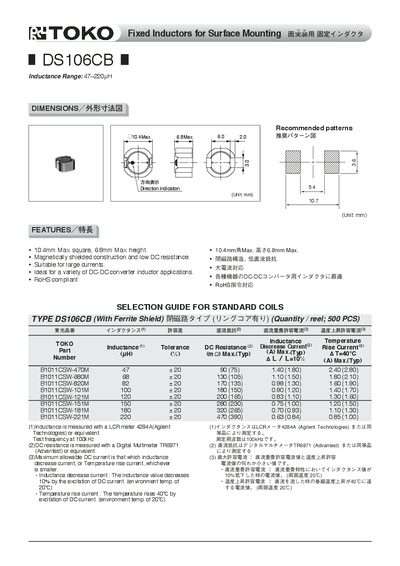

The leaflet lists the inductance range (47~220 µH), maximum dimensions (10.4 mm square, 6.8 mm height), and detailed electrical data such as DC resistance and maximum allowable DC current for each inductance value. A selection guide and recommended land‑pattern dimensions are also included.
| Inductance range | 47~220u1H |
|---|---|
| Maximum dimensions | 10.4 mm square, 6.8 mm height |
The DS106CB series covers an inductance range of 47 to 220 µH.
The inductor measures up to 10.4 mm square and 6.8 mm in height.
Yes, the DS106CB is RoHS compliant.
