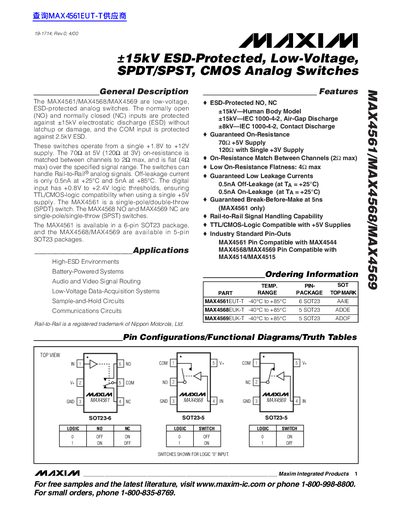

The MAX4561/MAX4568/MAX4569 are low-voltage, ESD-protected analog switches. The features and characteristics include: protection against ±15kV electrostatic discharge, operating voltage range of +1.8V to +12V, good channel-to-channel resistance matching, ability to handle Rail-to-Rail® analog signals, low leakage current, and low logic thresholds.
The MAX4561/MAX4568/MAX4569 are low-voltage, ESD-protected analog switches designed to operate from a single +1.8V to +12V supply. The MAX4561 is a single-pole/double-throw (SPDT) switch, while the MAX4568 and MAX4569 are single-pole/single-throw (SPST) switches with normally open and normally closed configurations, respectively.
These devices feature +15kV ESD protection on NO/NC inputs and 2.5kV on the COM input without latchup or damage. They offer a low on-resistance of 70Ω at 5V (120Ω at 3V) with excellent matching between channels and flatness over the signal range. The switches are capable of handling rail-to-rail analog signals and provide TTL/CMOS logic compatibility.
| Supply Voltage Range | +1.8V to +12V |
|---|---|
| On-Resistance (3V) | 120Ω typical |
| Off-Leakage Current (+25°C) | 0.5nA |
| ESD Protection (NO/NC) | +15kV Human Body Model |
| Package Type | SOT23-6 / SOT23-5 |
| Logic Compatibility | TTL/CMOS with +5V |
The typical on-resistance is 70Ω at a 5V supply.
Yes, the NO and NC inputs are protected against +15kV electrostatic discharge.
The devices operate from -40°C to +85°C.
