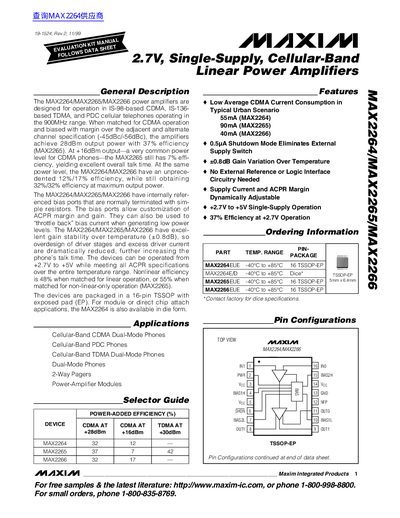

The MAX2264/MAX2265/MAX2266 power amplifiers are designed for operation in IS-98-based CDMA, IS-136-based TDMA, and PDC cellular telephones operating in the 900MHz range.
The MAX2264, MAX2265, and MAX2266 are linear power amplifiers designed for operation in IS-98-based CDMA, IS-136-based TDMA, and PDC cellular telephones operating in the 900MHz range. These devices feature internally referenced bias ports that allow customization of ACPR margin and gain, as well as throttling back bias current for low power levels.
| Operating Voltage Range | +2.7V to +5V |
|---|---|
| Idle Current (MAX2264) | 34 mA |
| Shutdown Supply Current | 0.5 uA |
The devices can be operated from +2.7V to +5V while meeting all ACPR specifications over the entire temperature range.
The devices can be operated from +2.7V to +5V while meeting all ACPR specifications over the entire temperature range.
