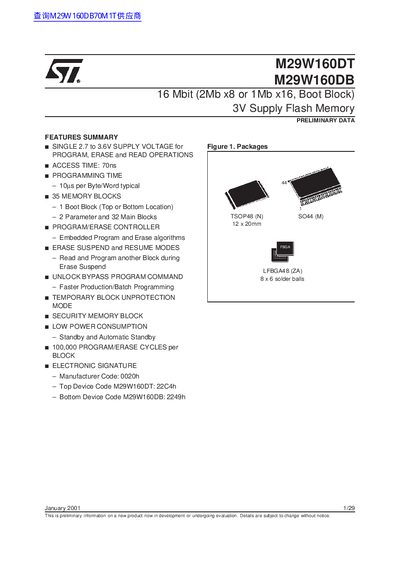

This document provides preliminary information on the M29W160DT and M29W160DB 16 Mbit (2Mb x8 or 1Mb x16, Boot Block) 3V Supply Flash Memory products. The products feature a single 2.7 to 3.6V supply voltage, 70ns access time, 10µs per Byte/Word programming time, and other characteristics.
The M29W160D is a 16 Mbit (2Mb x8 or 1Mb x16) non-volatile memory that can be read, erased and reprogrammed using a single low voltage (2.7 to 3.6V) supply. The memory is divided into blocks that can be erased independently, including a Boot Block for initialization code, Parameter Blocks, and Main Blocks.
| Memory Capacity | 16 Mbit (2Mb x8 or 1Mb x16) |
|---|---|
| Supply Voltage | 2.7 to 3.6V |
| Access Time | 70ns |
| Programming Time | 101s per Byte/Word typical |
| Memory Blocks | 35 Memory Blocks (1 Boot, 2 Parameter, 32 Main) |
| Program/Erase Cycles | 100,000 cycles per block |
The Manufacturer Code is 0020h.
The Top Device Code is 22C4h and the Bottom Device Code is 2249h.
The memory is offered in TSOP48, SO44 and LFBGA48 packages.
