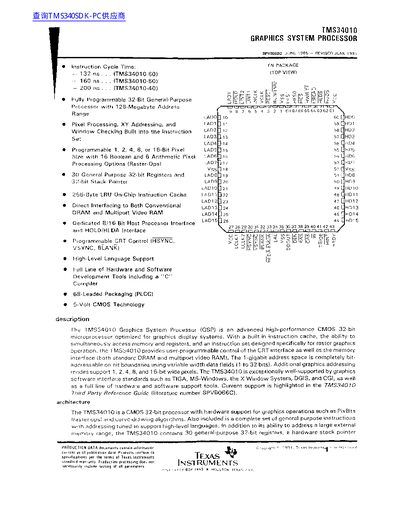

The document describes the TMS34010 Graphics System Processor (GSP), an advanced high-performance CMOS 32-bit microprocessor designed specifically for graphics display applications. Key features include a fully programmable 32-bit architecture, hardware support for pixel and pixel-array processing, and direct interfacing to both conventional DRAM and multiport video RAM.
| Instruction Cycle Time | 132 ns to 200 ns depending on speed grade |
|---|---|
| Instruction Cache Size | 256-Byte LRU On-Chip instruction Cache |
| Technology | 5-Volt CMOS Technology |
It is an advanced high-performance CMOS 32-bit microprocessor optimized for graphics display systems.
The processor supports 1, 2, 4, 8, or 16-bit wide pixels.
