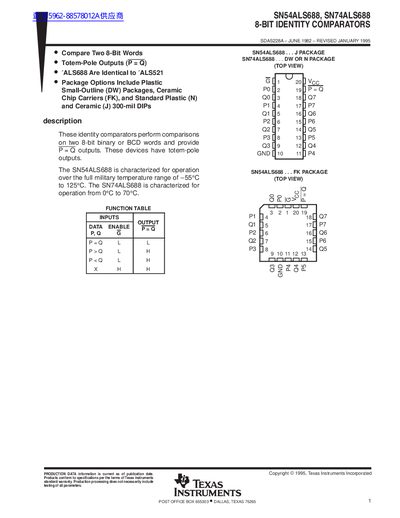

SN54ALS688, SN74ALS688 8-BIT IDENTITY COMPARATORS SDAS228A datasheet, the datasheet introduces the features and characteristics of the product, including function table, pin diagram, package, etc.
The SN54ALS688 and SN74ALS688 are 8-bit identity comparators that perform comparisons on two 8-bit binary or BCD words. These devices provide totem-pole outputs indicating whether the input words P and Q are identical (P=Q). The SN54ALS688 is characterized for military temperature ranges from -55°C to 125°C, while the SN74ALS688 operates from 0°C to 70°C.
| Supply Voltage (VCC) | 4.5 V to 5.5 V |
|---|---|
| High-Level Input Voltage (VIH) | 2 V |
| Low-Level Input Voltage (VIL) | 0.7 V |
| Operating Temperature (SN74ALS688) | 0°C to 70°C |
The device operates over a military temperature range from -55°C to 125°C.
The ceramic dual in-line (J) package has 20 pins.
