This document describes the features and characteristics of the Klixon series thermostats, including reliable make/break action, various mounting options, factory calibrated temperature setting, high capacity, and extra high capacity. These thermostats are suitable for applications such as air conditioners, heating and ventilating equipment, vending machines, dryers, and unit heaters.

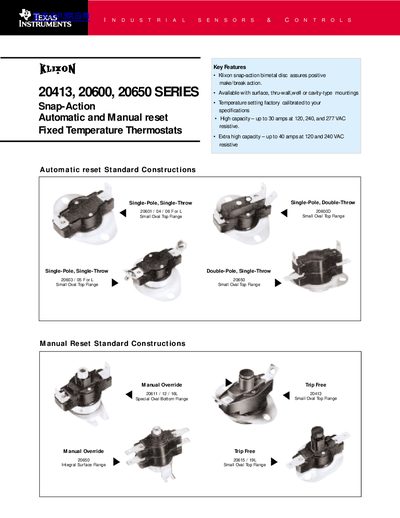

The document describes the 20413, 20600, and 20650 series of Klixon thermostats. These are fixed-setting, snap-acting devices designed for applications where space, capacity, and ease of assembly are critical factors. They feature a Klixon snap-action bimetal disc that ensures positive make/break action.
| Reset Type | Automatic and Manual reset |
|---|---|
| Standard Capacity (Resistive) | Up to 30 amps at 120, 240, and 277 VAC |
| Extra High Capacity (Resistive) | Up to 40 amps at 120 and 240 VAC |
| Agency Recognition | UL and CSA recognized |
They are ideal for air conditioners, heating and ventilating equipment, vending machines, dryers, unit heaters, and tabletop appliances.
Manual Override allows contacts to be closed at any time after actuation by depressing a reset button. Trip-Free contacts remain open until the bimetal disc resets naturally.
The 20600 series supports settings up to 350°F.
